MAVIG Lower Body Protection Systems

MAVIG UT70 Lower Body Protector

Lower body X-ray protection in a modular design: All components are interchangeable to give you the option to decide what amount of protection is needed and from which side of the table (possible mounting position: left or right). An accessory rail has been built into the shield to give the needed space for table and C-Arm controls, as well as other required equipment.

  • Lead equivalent of Pb 0.50 mm for all shields/panels

  • Up to max. 1620 mm width

  • Additional front accessory rail to match your table profile rail

  • Optional wall mounts for storage

  • Available for the following table profile rails: 7.7 x 25 mm (GE), 9 x 25 mm (Toshiba/Canon) und 10 x 25 mm (Philips/Siemens)

UT70

Modular Lower Body Protection

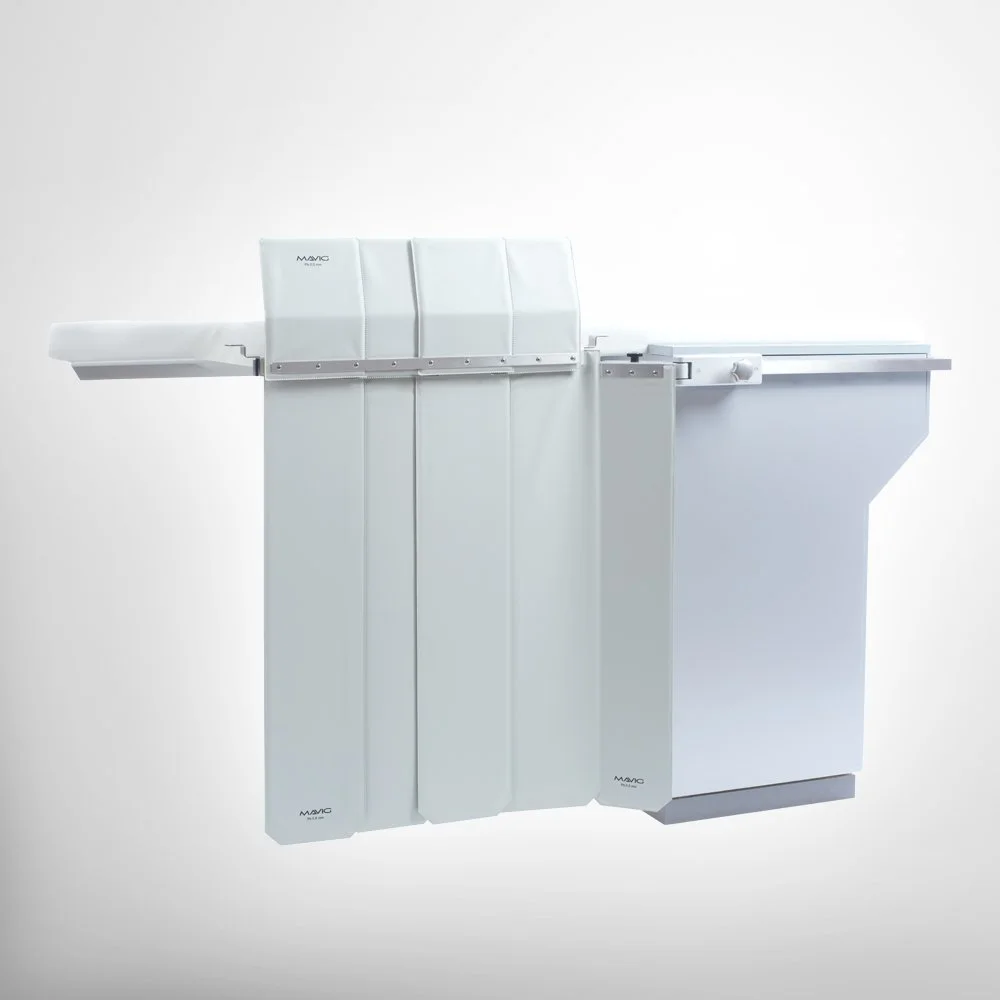

MAVIG UT69 Lower Body Protector

The UT69 offers maximum protection, thanks to the intermediate double articulated joint and the additional lateral lead panel (removeable). The upper shield can be removed quickly in case of emergency or for comfortable patient positioning.

  • Lead equivalent of Pb 0.50 mm

  • Solid construction and rounded edges reduce the risk of injuries

  • Overlapping, flexible radiation protective panels with PVC covering

  • Two practical wall mounts included (model dependend)

UT69

Lower Body Protection

MAVIG UT603x Lower Body Protector

The lower body protection system has a stable construction, rounded edges for low injury risks and a significantly larger protection zone against X-ray radiation scattering for the examiner and the assistant.

  • Lower sway panels self-adjust to table inclinations of up to 15°

  • All protective shields have a lead equivalent of Pb 0.50 mm

  • Fitted with MAVIG’s universal adapter that can be mounted to table rails ranging from 7 x 25 mm to 10 x 30 mm

  • Solid construction and rounded edges reduce the risk of injuries

UT603x

Lower Body Protection

MAVIG UT30 Lower Body Protector

The uniform panels can be combined and strategically placed to meet different applications and protection needs. The lightweight panels are especially suitable for surgical tables with height adjustable segments.

  • The panels are universally adaptable and can be combined individually

  • Lead equivalent of Pb 0.50 mm

  • Solid construction and rounded edges reduce the risk of injuries

UT30

Lower Body Protection
