MAVIG GD50 Medium-Load Monitor Suspension
With the increasing number of medical applications and room development, MAVIG has expanded its previous generation of medium-load monitor mount systems into a versatile product that meets the the continuously growing demand.
Free choice of stationary or ceiling track installation, with or without suspension arm
Maximum load capacity at the end of the spring arm (without monitor holder) up to 45.0 kg or 57.0 kg
Varying monitor sizes (19 – 32”) and quantities (1 – 4)
Design Details of the GD50
Ceiling tracks either 2500 or 4000 mm in length, for greater range or hybrid operating theatres
Column lengths of 140 up to 490 mm, suitable for rooms with many different ceiling heights
Single spring arm version 1010 mm in length
Or complete support arm as a combination of spring arm and extension arm of 1010 mm plus 1200 mm in length = working radius of 2210 mm
330° rotation on all joints and adjustable rotation stops in 60° steps on the monitor suspension (spring arm – monitor holder)
Adjustable vertical movement from +40° through to -40° at 45.0 kg load capacity and +28° through to -40° at 57.0 kg load capacity
Preinstalled power cabling for monitor and earthing and additional components earthing
Adequate space ( approx. 28 x 31 mm) in the system for internal cabling of customer-specific cable assemblies
System wiring installed (DVI, CAT i.a.) on request
Simple Product Configuration Using the MAVIG Modular Structure
Components can be assembled in the manner of a modular system (details here) and can be tailored to your individual requirements.For easy installation and trouble-free use, please use this summary to decide which configuration of your GD50 monitor suspension system best suits your needs.
Select the substructure for static mounted systems (for strong ceiling slabs or suspended ceilings / high ceilings)
Stationary mounting or track system
Ranges of movement of the system / monitor holder
Quantity and dimensions of the monitors to be supported or the weight category / additional load to be supported by the monitor holder
Ceiling Columns for Stationary Mounting with Extension and Spring Arm
Standard column lengths: 140 mm (A1), 190 mm (B1), 240 mm (C1), 290 mm (D1), 390 mm (E1) and 490 mm (F1)
Sturdy 110 mm diameter steel construction
Includes appropriate two-piece ceiling cover Ø 480 mm
Suspension arm: combined extension and spring arm the extension arm provides an additional 1200 mm range
Additional lengths available on request as custom-made products.
Ceiling Columns for Stationary Mounting with Single Spring Arm
Suspension arm: single spring arm 1010 mm in length
Vertical movement from +40° through to -40° at 45.0 kg load capacity and +28° through to -40° at 57.0 kg load capacity; additional stops at -14° and +14° adjustable (e.g. for short columns)
MAVIG Ceiling Tracks for Columns with Carriage
On-ceiling insulated ceiling track with additional earth connection
Long ceiling track: 2500 mm or 4000 mm
Wide ceiling track: 510 mm (external dimensions)
Individually adjustable crosspieces: maximum spacing 800 mm
Compatible with HALFEN/Unistrut® ceiling systems
Side profile for the mounting of cable holders (5 cable holders included in items supplied)
Includes cover plates for the track ends
Columns with Carriage for MAVIG Ceiling Tracks with a Single Spring Arm
Carriage column lengths: 140 mm (A1), 190 mm (B1), 240 mm (C1), 290 mm (D1), 390 mm (E1) and 490 mm (F1)
Sturdy 110 mm diameter steel construction
Including suitable carriage for the track
Suspension arm: single spring arm 1010 mm in length
Additional lengths available on request as custom-made products.
Wide Range of Monitor Holders Flexibly Adjustable
The GD50 series monitor holders are designed for use with up to four monitors as needed. There is a choice of three models, which can be equipped in line with the version in question with monitors ranging in size of from 19” up to 32”. An internal cabling arrangement is provided for the generously-sized MAVIG monitor holders. Adjustable grips and linear designed VESA 100 adapters provide a high level of flexibility for the size and mounting of the monitors.
It goes without saying that all of the systems offer the same levels of safety and reliability, for which MAVIG has been famous for decades.
Various models: for 1 – 4 monitors
Display sizes up to 32” available
Max. load: up to 47.5 kg (depending on model / spring tension)

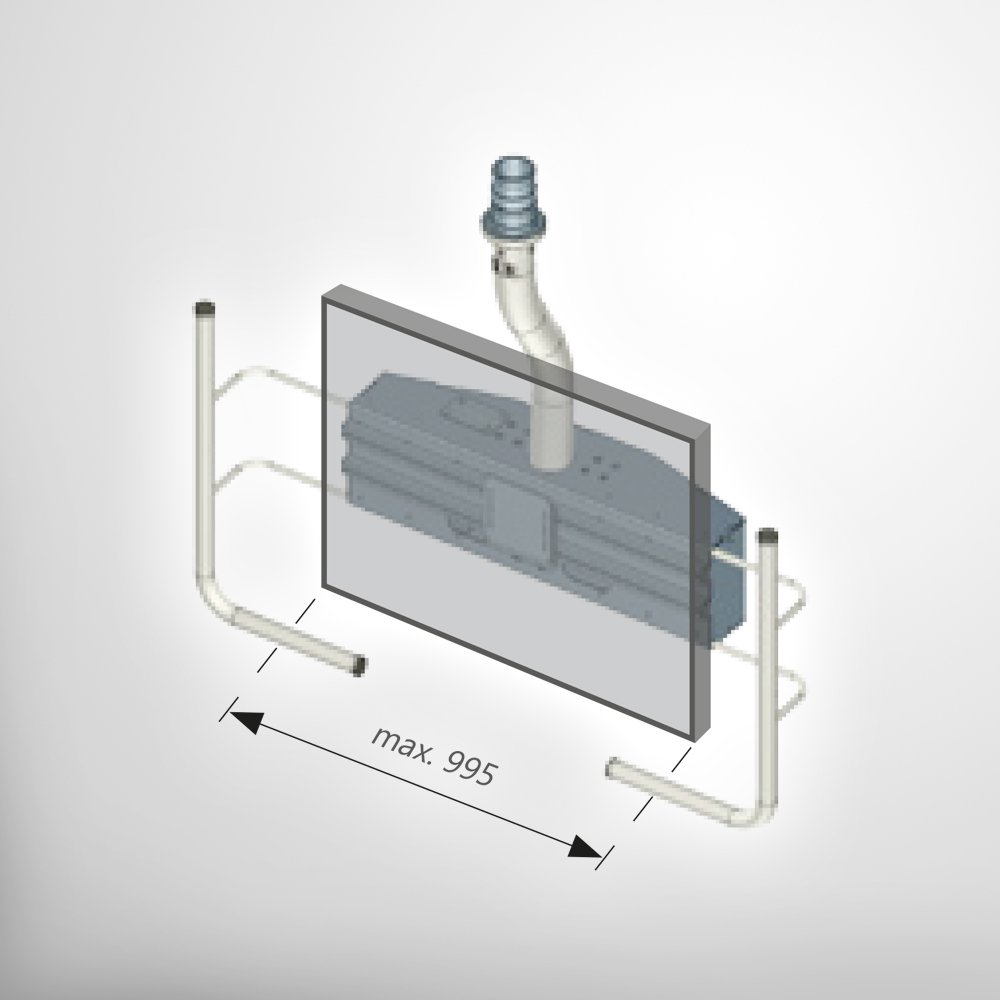

VESA 100 adapter linear design for free horizontal positioning
Handles adjustable: +/- 22 cm
Cable installation internal ( approx. 28 x 31 mm)
Paint colour RAL9010
Additional monitor sizes supplied upon request)
